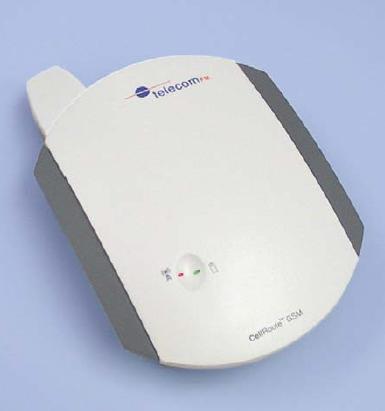

CellRoute-AC Simbox has been developed to enable major
network operators to provide Fixed Wireless Access
to emerging markets around the world.
In countries where having a fixed line is either an
expensive option or network infrastructure does
not exist, the CellRoute can provide fixed line
functionality over the GSM network.
CellRoute-AC provides users with high quality voice
using EFR (Enhanced Full Rate) codecs and has a
data link rate of 9600 Baud for Email and Internet
access.
The CellRoute-AC can be self-installed by the end
user, making the provisioning cycle simple and
reducing costs for the network operator.
Specifications CellRoute-AC Fixed Mobile Wireless Terminal
Telephony Interface
Call Control DTMF
Line Voltage 48V on hook
Loop Current 40mA off hook
Line impedance 600-ohm complex
Ring Voltage 70Vrms
Ring Load REN 4
CLIP Bellcore FSK
GSM Interface
GSM Module Siemens TC35i
Bands E-GSM 900MHz
GSM 1800MHz
Transmit Power Class 4 (2W) for E-GSM 900MHz
Class 1 (1W) for GSM 1800MHz
Speech Codecs Half Rate (ETS 06.20)
Full Rate (ETS 06.10)
Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)
Data Rate 2400, 4800, 9600 Baud
SIM Card 3V
Antenna Integral Omni directional Antenna with SMA connector for
external antenna option
Physical Interface
Telephone Analogue / RJ11 or BT603 option
Data Port RS232 / RJ45 with DB-9 converter
GSM Antenna Gold plated SMA male
SIM Card 3V Small card retained under rear panel
Indication 2 x LED indication for Power light / Transmission Status
Approvals
CE Certification to R & TTE directive 1999/S/SEC
GSM Certifications:
• ETS 300 607-1 Digital Cellular Telecommunications system
• EN 301 419-1 Global System for Mobile communication
• ETS 300 342-1 Radio Equipment and Systems
Power Supplies
Primary 110-240Vac @ 47-63Hz
Physical Specifications
Height 150 mm
Width 122 mm
Depth 42 mm
Weight 250 gm
Features Cellroute-AC Fixed Mobile Wireless Terminal
- Features Overview
- High Ringer Equivalence POTS Interface supports up to 4 additional extensions
- Highly compatible POTS & PABX interface
- Bellcore Caller Line ID Presentation
- GSM Network features supported (subject to network support)
- Selectable Dial tone and Ring cadences
- RS232 Data Port for emails/web and PC faxes.
- SIM lock
- Network lock
- Remote Software Upgrades
- Off-hook Howler
- External Antenna facility
